Description

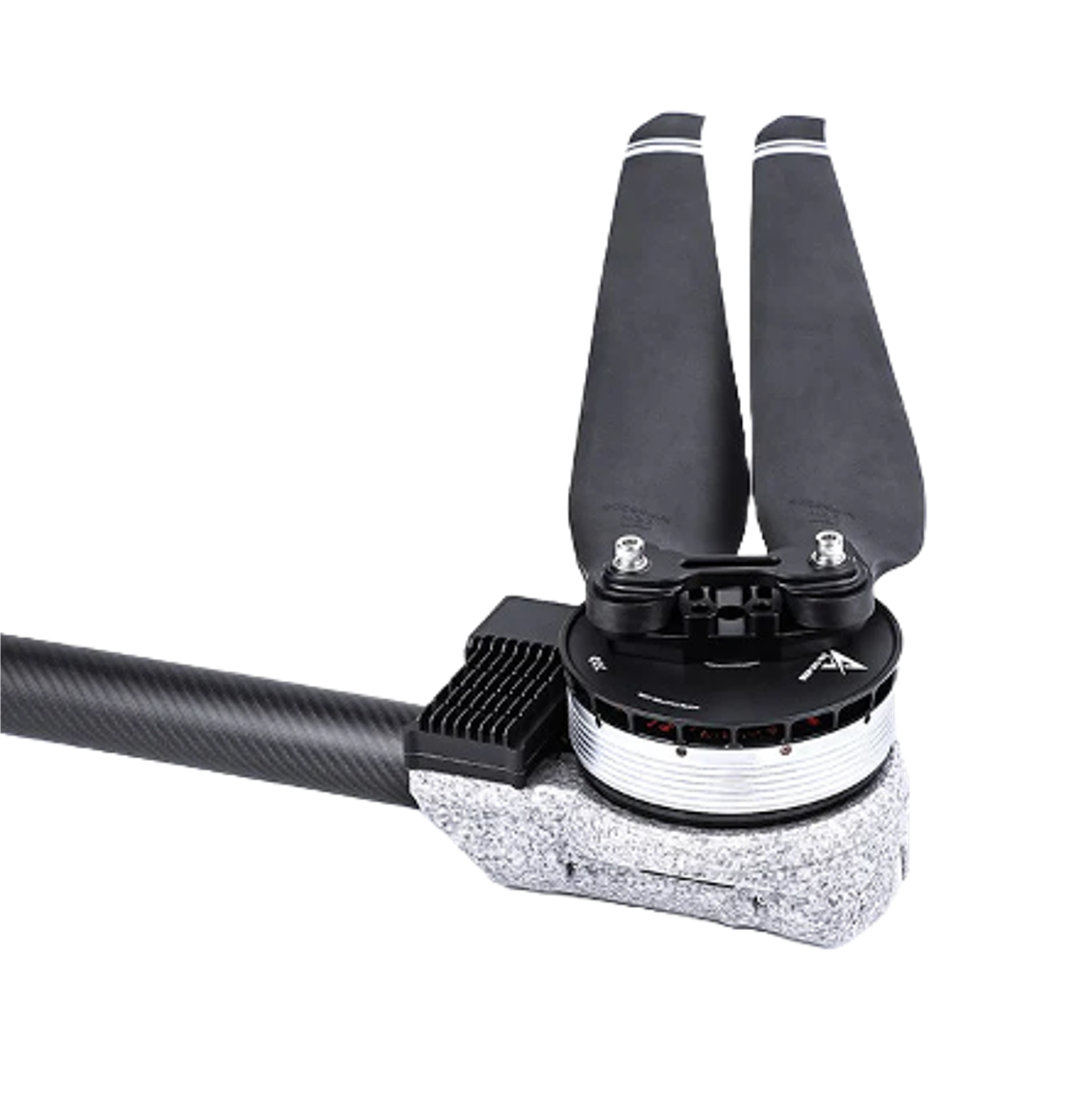

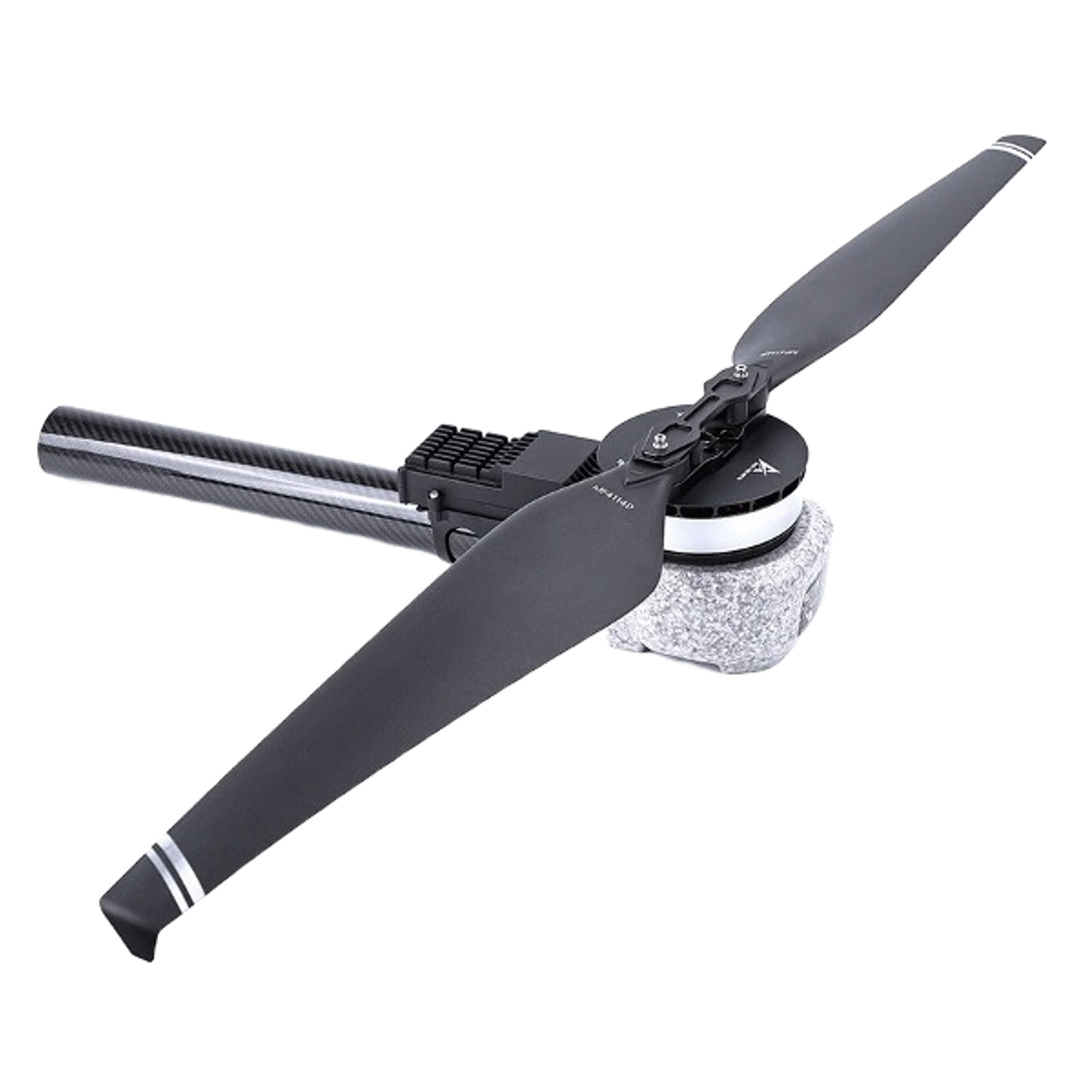

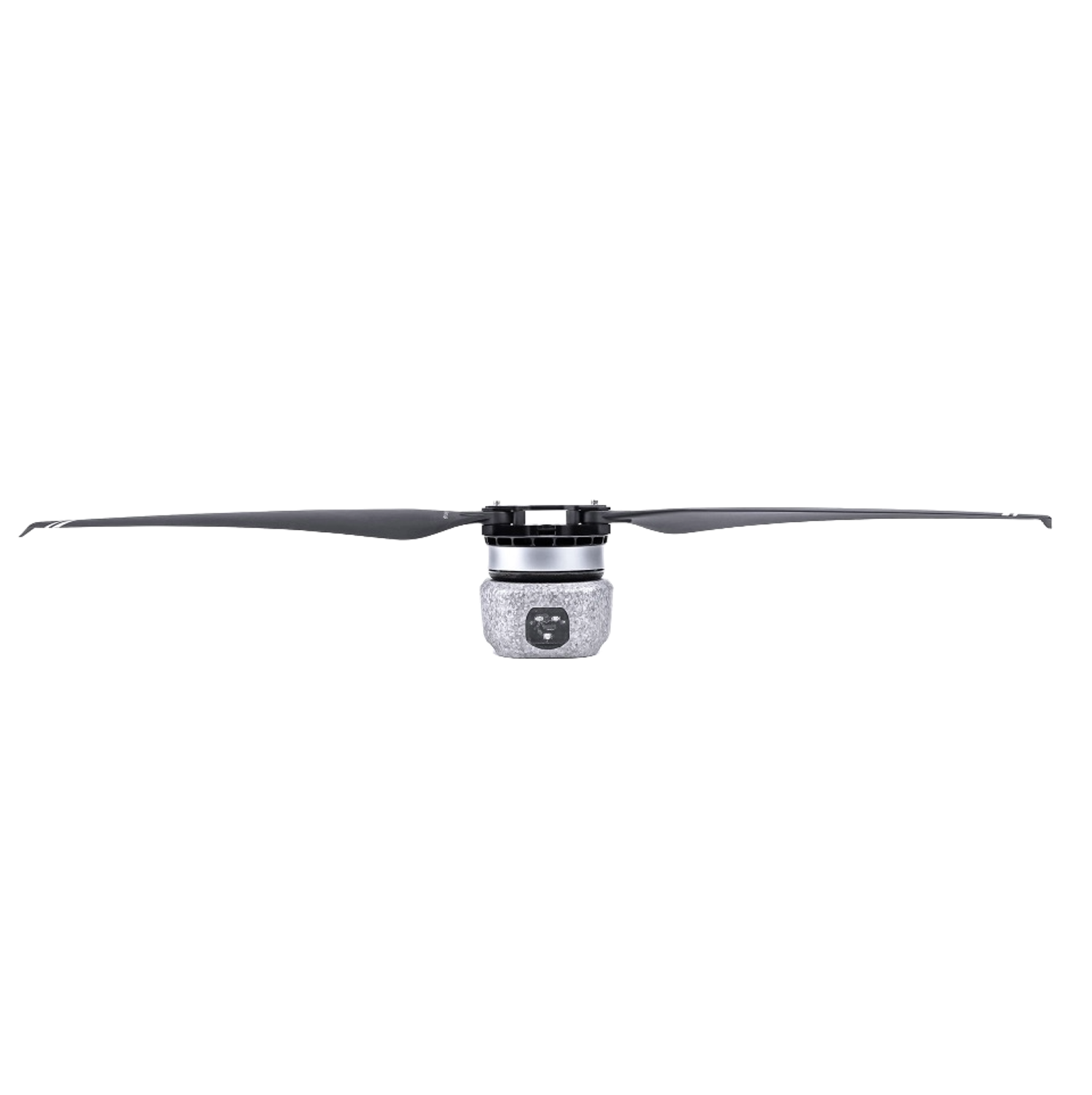

Propulsion system for Agricultural Drones
Load capacity(liquid) for Agriculture Quadcopter Drone: 30L
Load capacity(liquid) for Agriculture Hexacopter Drone: 50L
Take-off weight for Quadcopter: 60~72kg
Take-off weight for Hexacopter: 90~108kg
Tube size: 50mm
Setup: A12L-18S (Motor)+ 18S FOC150A (ESC) + MF4315P (Prop)
Wire material, wire gauge, color: Power wires: 10#AWG red & black
Signal wires: 5P Teflon
Recommended battery: 14~185 (LiPo)
Wire length: 1700÷5mm
Rated thrust: 15 ~ 18kg
Weight: 2400g 2% (incl. Wires+ prop)
Efficiency at rated thrust: 8.6g/W (18kg)
IP: IPX6
Max. thrust: 36.7kg
Recommended ambient temperature: -30°C ~ 50°C
